POWER SPRAYERS (KNAPSACK TYPE SPRAYER)
KS-PK4000P
KS-PK2000PH
KS-PK2000P
KS-PK2000
| Model | KS-PK4000P | KS-PK2000PH | KS-PK2000P | KS-PK2000 |
|---|---|---|---|---|
| Type | Li-ion rechargeable battery | Li-ion rechargeable battery | Li-ion rechargeable battery | Li-ion rechargeable battery |
| Dimension (L x W x H) |
360 x 550 x 970 (mm) | 425 x 330 x 970 (mm) | 320 x 420 x 850 (mm) | 250 x 350 x 555 (mm) |
| Dry weight(Kg) | 15 | 10 | 6.8 | 4.2 |
| Revolution (rpm) | 40 | 20 | 20 | 20 |
| Spraying capacity (L/mm) | 1.6 | 1.6 | 1.6 | 1.6 |
KS-PK5000P
KS-PK2000N
KS-PK3000
KS-PK7000P

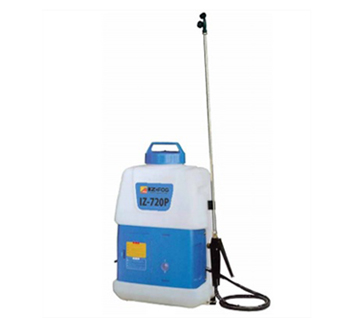

IZ-720P
| Model | KS-PK5000P | KS-PK2000N·KS-PK3000 | KS-PK7000P | IZ-720P |
|---|---|---|---|---|
| Type | Li-ion rechargeable battery | Li-ion rechargeable battery | Li-ion rechargeable battery | |
| Dimension(L x W x H) | 480 x 650 x 860 (mm) | 250 x 345 x 580 (mm) | 308 x 235 x 600 (mm) | |
| Dry weight(Kg) | 20.5 | 4.2 | 4.7 | |
| Revolution (rpm) | 50 | 20 | 20 | |
| Spraying capacity (L/mm) | 1.6 | 1.6 | 1.6 |

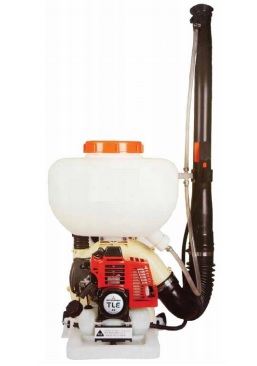

IZ-3315
| SPECIFICATIONS | ||
|---|---|---|
| MODEL | 3315 | |
| L / W / H(㎜) | 375 / 385 / 585 | |
| CHEMICAL TANK CAPACITY(ℓ) | 15 | |
| FUNCTION | SPRAY | |
| MAXIMUN BLOWER(m) | 9 | |
| WEIGHT(㎏) | 9 | |
| ENGINE | MODEL | TLE33FA |
| TYPE | AIR COOLED 2CYCLE GASOLINE ENGINE | |
| DISPLACEMENT(㏄) | 32.6 | |
| MAXIMUM | 1.32 | |
| STARTIMG SYSTEM | RECOIL STARTER | |
| FUEL USED | GASOLINE:OIL / 50:1 | |

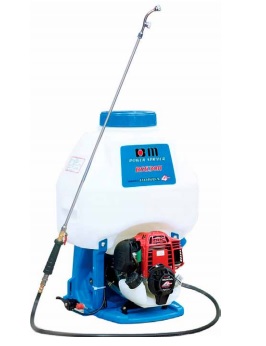

IZ-224(H)
| MODEL | BS630H | ||
|---|---|---|---|
| MEASUREMENT(L×W×H)㎜ | 480×330×640 | ||
| WEIGHT(㎏) | 9.6 | ||
| CHEMICAL TANK CAPACITY(ℓ) | 25 | ||
| FUEL TANK CAPACITY(ℓ) | 0.55 | ||
| PUMP | TYPE | 2PLUNG PISTON SYSTEM | |
| PRESSURE(㎏f/㎠) | 4 LEVEL CONTROL / 25 | ||
| SUCTION(ℓ/min) | 7.1 | ||
| ROTATION FREQUENCY(rpm) | 1,800 | ||
| ENGINE | TYPE | 4CYCLE GASOLINE | |
| MODEL | GX25 | ||
| PRODUCTION COMPANY | HONDA | ||
| POWER(㏄) | 25 | ||
| FUEL USED | GASOLINE | ||
| CABURATOR | DYAFRAM | ||
| SYSTEM FOR FIRE | ELECTRIC SYSTEM | ||
| START SYSTEM | RECOIL STARTER/td> | ||

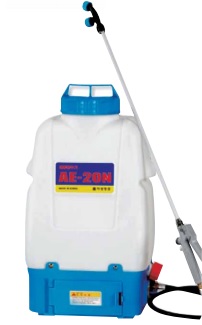

AE-20N
| SIZE(㎜) L×W×H |
210×320×570 | |
|---|---|---|
| WEIGHT(㎏) | 4.5 | |
| LIQUID TANK CAPACITY(ℓ) | 20 | |
| PUMP | TYPE | Diaphragm type |
| SPRAYER AMOUNT | High-1.4ℓ/min, Low-1.0ℓ/min | |
| PRESSURE | high-5kgf/㎠,Low-2.5kgf/㎠ | |
| BATTERY (Li-ion) |
RALED POWER | 12V 5000mAh |
| RECHARGE TIME | Approx, 3hours | |
| OPERATING TIME (Continuous) |
High-2hour, Low-4hour | |
