Power Sprayer Motor Type

Power Sprayer Motor Type

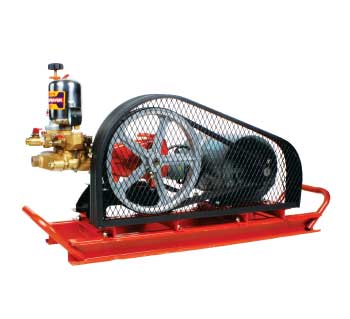

  • KSM
Model KSM-30A KSM-50A KSM-80A
Type 30A + Motor 50A + Motor 80A + Motor
Dimension
(L x W x H)		 700 x 360 x 420 (mm) 950 x 400 x 540 (mm) 950 x 400 x 580 (mm)
Dry weight(Kg) 43 57 64
Revolution (rpm) 360 360 360
Suction capacity (l/mm) 10 17 29
Normal pressure (kg/㎠) 25 ~ 30 25 ~ 30 25 ~ 35
Max. pressure (kg/㎠) 35 40 40
Required power (Hp) 1.5 ~ 2.0 2.0 ~ 3.0 3.0 ~ 5.0

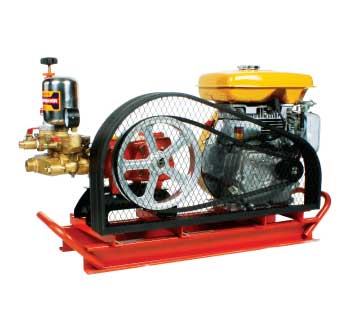

  • KSE
Model KSE-30A KSE-50A KSE-80A
Type 30A + Engine 50A + Engine 80A + Engine
Dimension
(L x W x H)		 700 x 360 x 420 (mm) 950 x 400 x 540 (mm) 950 x 400 x 630 (mm)
Dry weight(Kg) 43 55 64
Revolution (rpm) 565 460 460
Suction capacity (l/mm) 11 22 37.5
Normal pressure (kg/㎠) 25 ~ 30 25 ~ 30 25 ~ 35
Max. pressure (kg/㎠) 35 40 40
Required power (Hp) 1.5 ~ 2.0 2.0 ~ 3.0 3.0 ~ 5.0

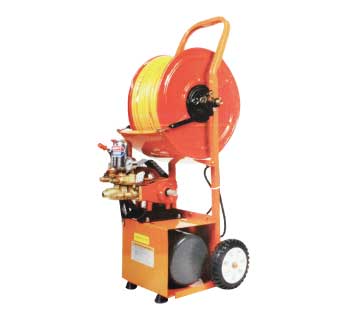

  • KSMT
Model KSMT-30A
Type 30A + Motor(2wheels)
Dimension
(L x W x H)		 480 x 660 x 1,120 (mm)
Dry weight(Kg) 65
Revolution (rpm) 360
Suction capacity (l/mm) 10
Normal pressure (kg/㎠) 25 ~ 30
Max. pressure (kg/㎠) 35
Required power (Hp) 1.5 ~ 2.0
Spray Hose ( Ø/m) 8.5 / 100

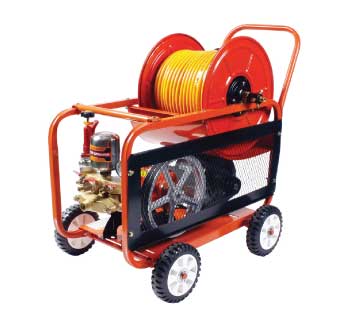

  • KSM
Model KSM-30A KSM-50A KSM-80A
Type 30A + Motor(4wheels) 50A + Motor(4wheels) 80A + Motor(4wheels)
Dimension
(L x W x H)		 1,180 x 620 x 870 (mm) 1,180 x 620 x 870 (mm) 1,180 x 620 x 870 (mm)
Dry weight(Kg) 76 86 94
Revolution (rpm) 360 360 360
Suction capacity (l/mm) 10 17 29
Normal pressure (kg/㎠) 25 ~ 30 25 ~ 30 25 ~ 35
Max. pressure (kg/㎠) 35 40 40
Required power (Hp) 1.5 ~ 2.0 2.0 ~ 3.0 3.0 ~ 5.0
Spray Hose 8.5 / 100 8.5 / 100 8.5 / 100

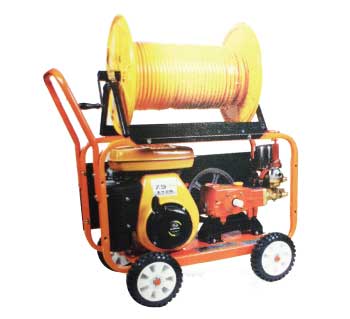

  • KSE
Model KSET-30A KSET-50A KSET-80A
Type 30A + Engine(4wheels) 50A + Engine(4wheels) 80A + Engine(4wheels)
Dimension
(L x W x H)		 1,100 x 650 x 920 (mm) 1,180 x 620 x 900 (mm) 1,180 x 620 x 900 (mm)
Dry weight(Kg) 82 86 93
Revolution (rpm) 565 460 360
Suction capacity (l/mm) 11 22 37.5
Normal pressure (kg/㎠) 25 ~ 30 25 ~ 30 25 ~ 35
Max. pressure (kg/㎠) 35 40 40
Required power (Hp) 1.5 ~ 2.0 2.0 ~ 3.0 3.0 ~ 5.0
Spray Hose 8.5 / 100 8.5 / 100 8.5 / 100

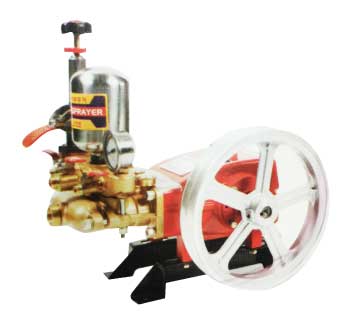

  • KSMT
Model KS-30A KS-50A KS-80A KS-100A
Type Horizontal, 2-plungers Horizontal, 3-plungers Horizontal, 3-plungers Horizontal, 3-plungers
Dimension
(L x W x H)		 410 x 240 x 330 (mm) 450 x 290 x 370 (mm) 450 x 320 x 410 (mm) 605 x 380 x 565 (mm)
Dry weight(Kg) 12 18 21 32
Revolution (rpm) 700 ~ 1,100 700 ~ 1,100 700 ~ 1,200 700 ~ 1,200
Suction capacity (l/mm) 13 ~ 20 33 ~ 52 57 ~ 90 85 ~ 130
Normal pressure (kg/㎠) 25 ~ 30 25 ~ 30 25 ~ 35 25 ~ 35
Max. pressure (kg/㎠) 35 40 40 40
Required power (Hp) 1.5 ~ 2.0 2.0 ~ 3.0 3.0 ~ 5.0 6.0 ~ 8.0

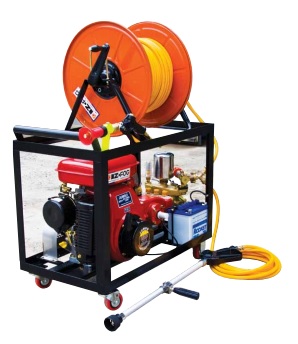

  • IZ-14
Main Specification
Engine Sprayer
  1. Horse power: normal 5.5HP 1,800RPM max 7.5HP 2,000RPM
  2. Fuel : Gasoline
  3. Fuel consumption : 2.2ℓ/H
  4. Fuel Tank capacity : 5.5ℓ
  5. Starting system : switch type, Recoil starter
  1. Type : 80A
  2. RPM : normal 800RPM, max 1,200RPM
  3. Pressure : normal 30Kg/㎠, max 80Kg/㎠
  4. Suction capacity : normal 62ℓ/min,max 98ℓ/min
  5. Using power : normal 5.0HP, max 7.0HP
Efficacy of Automatic Spray System
  1. No need to move the spray pressure control lever
  2. Energy efficient and chemical saving
  3. overload protective device for prolonged life
  4. High efficiency
  5. Two spray gun
  6. The carrying frame mounted on caters
