Fogging Machines

SS 150FTM · SS 150AFTM · SS 180FTM · SS 180AFTM

SS 150UTM · SS 180UTM

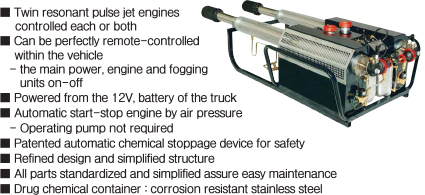

SS 400FTM · SS 400FUTM

Product Specification

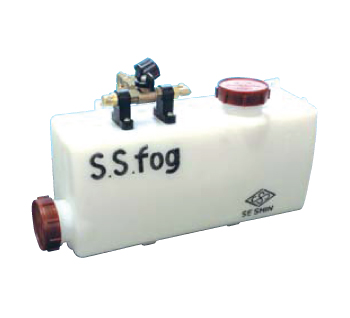

  • Drug tank,
    Polyethylene
    Capacity : 7.5ℓ
    For SS 180

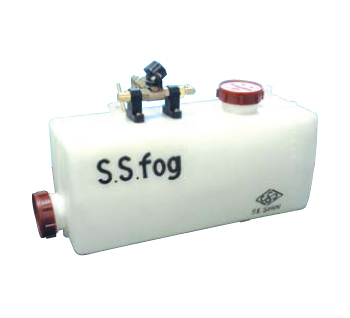

  • Drug tank,
    Polyethylene
    Capacity : 5.5ℓ
    For SS 150

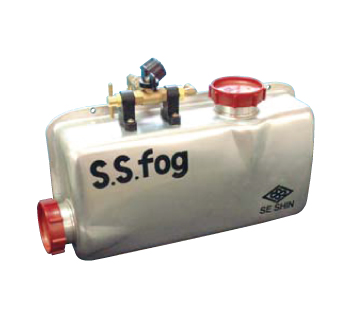

  • Drug tank,
    Stainless steel
    Capacity : 6.5ℓ
    For SS 150

※ P.E : Polyethylene, S.S : Stainless steel

Model SS150 SS180 SS400
Using method Poratble Poratble Vehicle
mountable
Fogging type Thermal fogger
Engine Type Puls jet
Performance(kw/h) 21 28 23×2
Fuel tank Type Pure gasoline
Consumption 2 3 2.3×2
Tank Material Corrosion resistant aluminum
Capacity(ℓ) 1.5 1.8 13
Pressure(bar) 0.1 0.1 0.1
Drug tank Output quantity(ℓ/h) 50 60 150
Tank Material Capacity(ℓ) P.E : 5.5 / S.S : 6.5 P.E : 7.5 S.S : 108
Pressure(bar) 0.3 0.3 0.3
Dimension(cm) - - 80×32×51

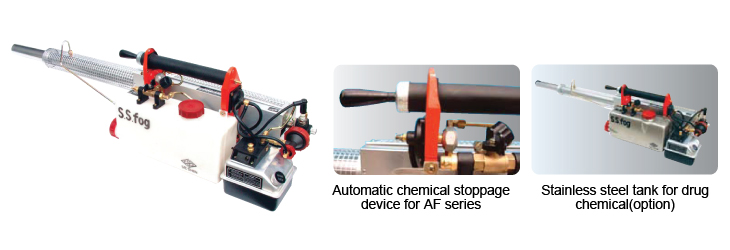

Auto-stop device for safety SS150AF : O SS180AF : O SS180AF : O
SS150F : X SS180F : X
Machine Weight, empty(kg) 9.0 11.5 50.0
Dimension(LxWxHcm) 134x29x34 130x30x34 156x76x38
Shipping information Machine Package type Carton Carton Carton
Dimension(cm) 135x30x35 135x30x35 156x76x38
Weight(kg) 13.0 14.5 80.0
Drug tank Package type Not need Not need Wooden
Dimension(cm) - - 82×36×72
Weight(kg) - - 20.0

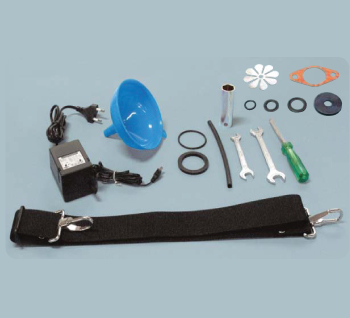

  • Adapter to refill up
  • Fuel funnel with strainer
  • Bag with tool kit
  • Set of spare O-rings, diaphragms and gaskets
  • Carrying strap
